Solebar sagging in SLRD coaches

Background:

Solebar sagging at Luggage area was reported in SLRD coaches.

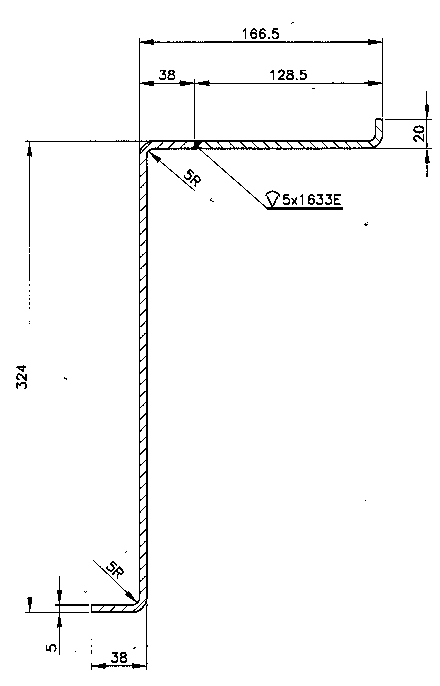

Solebar of 5mm thick Drg. No.242-1-1-202 Dt. 25-09-2001

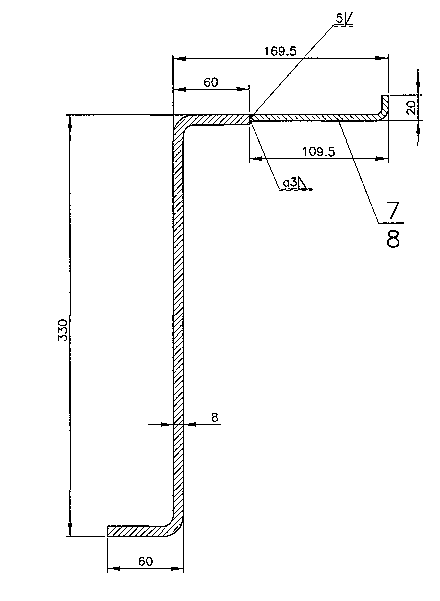

Solebar of 8mm thick Drg. No.242-1-1-252 Dt. 13-06-2013

CCTV CCTV

Description:

To rectify this issue, after calculations, the Thickness of sole bar is increased from 5mm to 8mm.

Implementation Status at ICF:

Implemented from October 2013.
