'A' dimension Pad (Crown Clearance Stop)

Background:

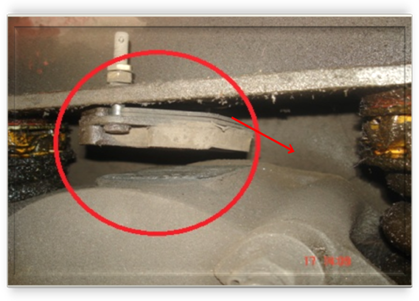

RBolt and nut of diamond shape modified 'A' dimension pad (crown clearance) cannot be attended in pit-lines during rake maintenance if worked out.

GS Lavatory paneling

GS roof paneling

CCTV CCTV

Modified Pad

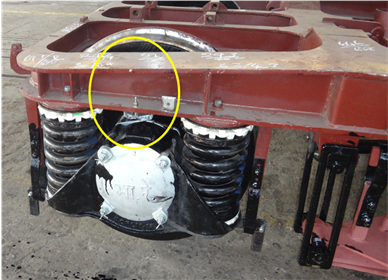

Modified Crown Clearance Pad

Description:

Design modified as per drawing No.000-0-1-650 alt Nil dt.28-03-13 and sent to RDSO. RDSO advised vide their Lr.No.MC/ICF/BD dt.10-07-2013 for trial fitment in 50 coach sets



Implementation Status at ICF:

Under Trial. To be implemented after success of trial.
