Mounting arrangement of Exhaust fan on Roof in WCB Coaches

Background:

Existing mounting arrangement of exhaust fan on roof in WCB coaches sprays soot on the ceiling panels.

Gravity Cock With APD CCTV

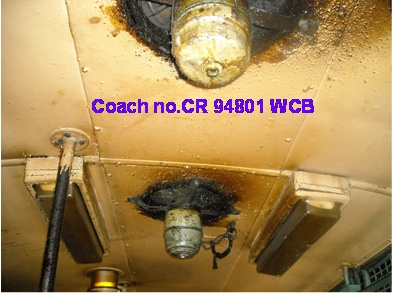

Earlier Mounting Arrangement

Current Mounting Arragement

Description:

The mounting arrangement has been modified with hood for exhaust fan

Implementation Status at ICF:

Implemented for trail from 2013.
